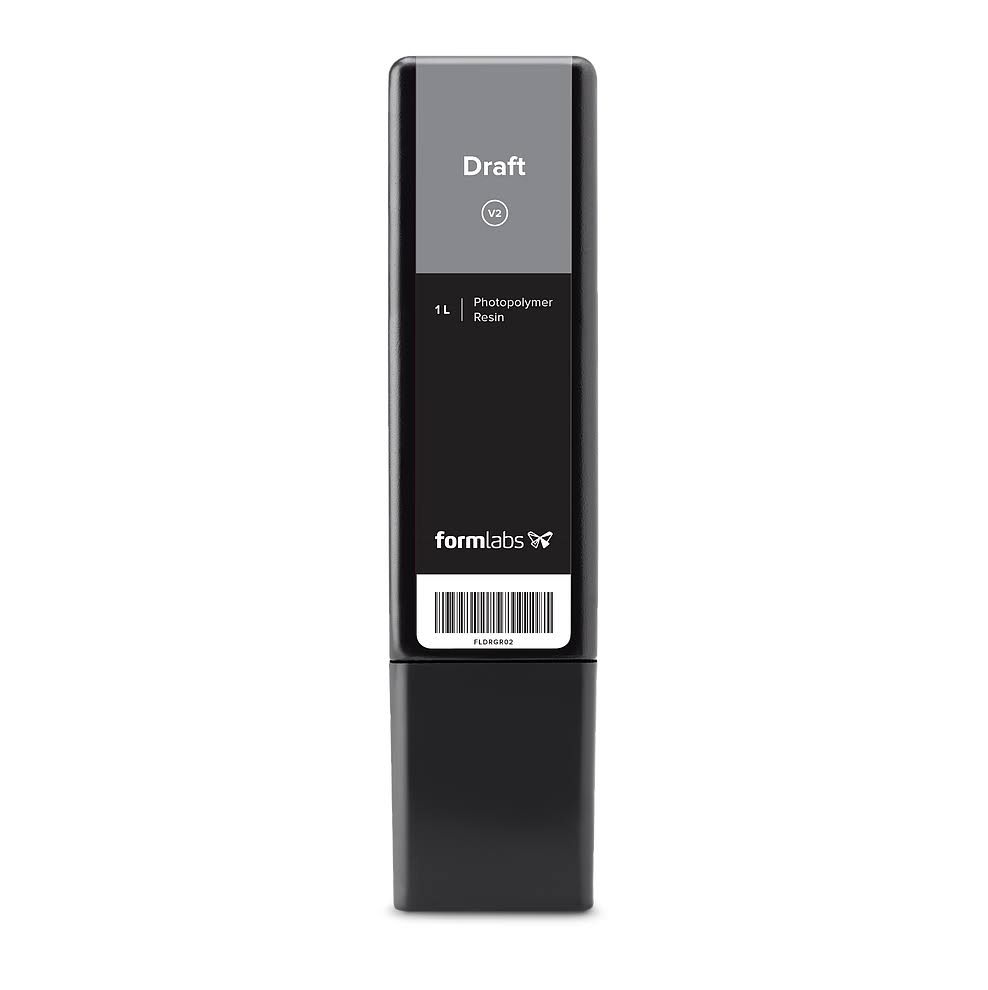

Formlabs Draft Resin Cartridge v2.
Draft Resin Form 3 5 L

RS-F2-DRGR-02

Formlabs | Draft Resin V2 (Form 3)

$159.00

Draft Resin prints up to four times faster than Formlabs’ General Purpose Resins on Form 3 Series printers, making it ideal for early prototypes, rapid design iterations, and orthodontic models for thermoforming clear aligners and retainers. Printed parts feature a smooth grey finish with high accuracy.

Choose 200-micron settings for maximum speed or 100-micron settings for models requiring finer detail.

Draft Resin is compatible with Form 3 and Form 2 Series printers. Choose Fast Model Resin on the Form 4 Series for three times faster print speed and improved mechanical properties.

IMPORTANT: 5 L Container Requires a Resin Pump to work.
Size

  • Priority Delivery

    Typically ships within 1 week

  • After-Sale Service

    Email and Phone support

  • Material Properties

  • Request Information

Green

Ultimate Tensile Strength

24 MPa

Tensile Modulus

0.8 GPa

Elongation at Break

14%

Flexural Modulus

0.6 GPa

Notched Izod

26 J/m

Post-cured at Room Temperature

Ultimate Tensile Strength

36 MPa

Tensile Modulus

1.7 GPa

Elongation at Break

5%

Flexural Modulus

1.8 GPa

Notched Izod

29 J/m

Post-cured at 60 °C

Ultimate Tensile Strength

52 MPa

Tensile Modulus

2.3 GPa

Elongation at Break

4%

Flexural Modulus

2.3 GPa

Notched Izod

26 J/m

Need more information?

We’re committed to providing expert insights and responsive service to guide you every step of the way. To get started, simply fill out the form below and we’ll be in touch shortly.

Need more information?

We’re committed to providing expert insights and responsive service to guide you every step of the way. To get started, simply fill out the form below and we’ll be in touch shortly.

Draft Resin V2 (Form 3) by Formlabs

Experience the Benefits

Much faster printing

It prints up to 4× faster than standard Formlabs resins, enabling rapid iteration and same-day prototyping.

Flexibility with resolution settings

Supports both 200 µm (fast mode) and 100 µm (for finer detail) layer settings, giving users a balance between speed and resolution.

Smooth grey finish with good accuracy

Despite the speed, parts still exhibit a clean grey surface and maintain reliable dimensional fidelity.

Optimized workflow & reduced post-processing

Reformulated to reduce support touchpoints, wash and cure times, making the print-to-finish cycle more efficient.

For Draft Resin V2 (Form 3)

our featured products

find your answers here

frequently asked questions

How much faster is Draft Resin V2 compared to standard resins?

It prints up to 4× faster than Formlabs general purpose resins.

What resolutions does Draft Resin V2 support?

It supports 200 µm for maximum speed, or 100 µm for parts with finer detail.

Which printers are compatible with Draft Resin V2?

Draft Resin is compatible with Form 3 (and older Form 2) series printers.

What is the surface finish and accuracy like for Draft Resin V2?

It provides a smooth grey surface and acceptable accuracy for prototyping, while trading off some fine texture fidelity.

What are the post-processing recommendations for Draft Resin V2?

Wash in isopropyl alcohol, and two post-cure options are available: ambient 5 min or 5 min at 60 °C for better mechanical properties.
