Form Cure 2nd Gen
Form Cure 2nd Gen
Form Cure 2nd Gen

FH-CU-120V-02

Formlabs | Form Cure (2nd Generation) 120V

Starting at
$999.00

Form Cure (2nd Generation) delivers fast, high-performance post-curing with a powerful combination of heat and 405 nm light. With 4× more UV power, 5× faster heat-up times, and a 1.3× larger chamber, it cures Form 4/B prints in as little as 60 seconds. Choose from 45+ validated material presets or customize settings to meet your needs.

Post-curing finalizes the chemical process, improving part strength, toughness, heat resistance, and surface quality. It also ensures biocompatible materials meet required regulatory standards.

Request a Quote

  • Priority Delivery

    Typically ships within 1 week

  • Ease of Use

    Engineered for quick and simple cleanup

  • Warranty

    1-Year warranty

  • After-Sale Service

    Email and Phone support

  • Product Specifications
  • Product Services

Technical Specifications

Cures General Purpose V5 Resins

60 s

Time to 100° C

250s @230V

 270s @120V

Printer Compatibility

Form 4, Form 4B, Form 3/+, Form 3B/+, Form 2

Max Temperature

100 °C

Outer Dimensions

337 × 404 × 372 mm (13.3 × 14.0 × 15.9 in)

UV irradiance at the part

14.5 mW/cm²

Product Weight

12.1 kg (26.7 lb)

LED Power

150 W

Supported Build Volume

200 × 125 × 205 mm

LED Radiant Power

50 W

Internal Chamber Volume

250 × 250 × 265 mm

Chamber UV uniformity

+/- 5%

Turntable Diameter

235 mm (9.25 in)

Light Source

48 multi-directional LEDs

Maximum Part Height

245 mm

LED Peak wavelength

405 nm

Time to 60° C

60s @230V

80s @120V

Water resistance

Splash resistant

Time to 80° C

150s @230V

180s @120V

Power Requirements

Input (NA) 100 - 120 VAC, 50-60Hz, 15A
Input (EU) 220 - 240 VAC, 50-60Hz, 8A

Professional Support

Additional Warranty Available

Starting at $499

Expert Support

Phone support by our team. Available Monday through Friday, 9 am - 5 pm CST.

A CLOSER LOOK

EXPLORE THE FORM CURE (2ND GEN)

Download Brochure

Fast Heating & Curing

Cures standard resins in 60 s and engineering resins in under 15 min with rapid 60 s heat-up.

Fits Large Prints

Cures full-size Form 4 parts up to 200 × 125 × 205 mm on a 235 mm rotating platform.

Consistent Results

48 LEDs and convection heat ensure even exposure up to 100 °C at 14.5 mW/cm².

Easy to Use

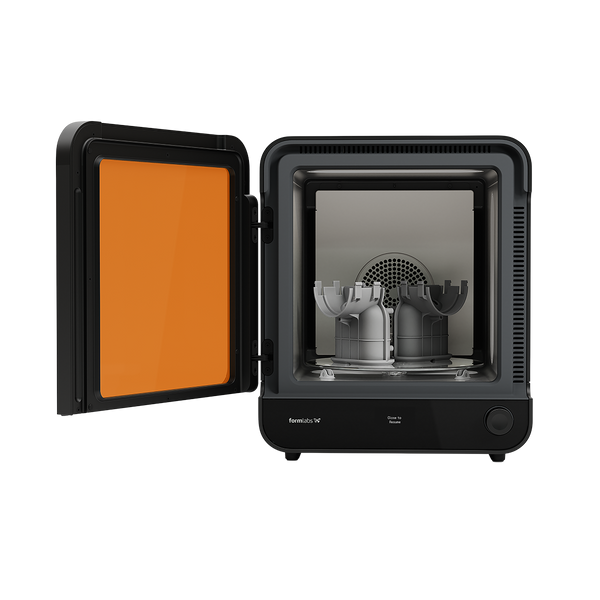

Features pre-set cycles, a side-hinged door, and a wipeable glass turntable in a compact design.

MEET THE PRODUCT

INTRODUCING THE FORM CURE (2ND GEN)
Poster

FOR FORMLABS Cure (2nd Gen)

OUR RELATED PRODUCTS
Formlabs Form Wash (2nd Generation).

Formlabs | Form Wash (2nd Generation)

Form Wash automatically cleans printed parts thoroughly and efficiently with IPA or alternative solvents. Keep parts directly on the Build Platform as you transition them from the printer to Form Wash, or remove parts and place them in the wash basket. Parts are precisely and thoroughly agitated in solvent with an impeller, getting every nook and cranny perfectly clean, automatically for the appropriate time. When washing completes, the Form Wash automatically raises parts out of the IPA so they can air dry.
$699.00
Formlabs Form 4 Build Platform Flex.

Formlabs | Form 4 | Build Platform Flex |

Form 4 Build Platform Flex with Quick Release Technology allows you to quickly and easily remove parts from the print surface without tools in seconds. Recommended for almost all prints, Build Platform Flex eliminates the risk of damaging your part and streamlines your workflow.
$249.00
Formlabs Form 4 3D printer.

Formlabs | Form 4 Basic Package

Transform your ideas into reality faster than ever with easy workflows, leading reliability, and stunning part quality using the Form 4 professional 3D printer ecosystem. Form 4 is a blazing fast masked SLA 3D printer that combines an industry-leading materials library with a reliable, accurate print engine. With tight tolerances, parts printed in every resin on Form 4 will match your design parameters, every time.
$3,499.00

Learn More

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

What printers is the Form Cure 2nd Generation compatible with?

It’s compatible with Form 4, Form 3/+, and Form 2 prints—designed to cure parts up to 200 × 125 × 205 mm.

How long does the Form Cure 2nd Generation take to cure parts?

Cures standard resins in 60 seconds and most engineering resins in under 15 minutes.

What temperature can the Form Cure 2nd Generation reach?

It heats up to 100 °C, reaching 60 °C in just 60 seconds (90 seconds on 120 V units).

Does the Form Cure 2nd Generation have automatic settings?

Yes, it features pre-programmed cure profiles tailored for each resin type.

Is the turntable for the Form Cure 2nd Generation included and removable?

Yes, it includes a 235 mm glass turntable that’s easy to clean and provides uniform part exposure.
