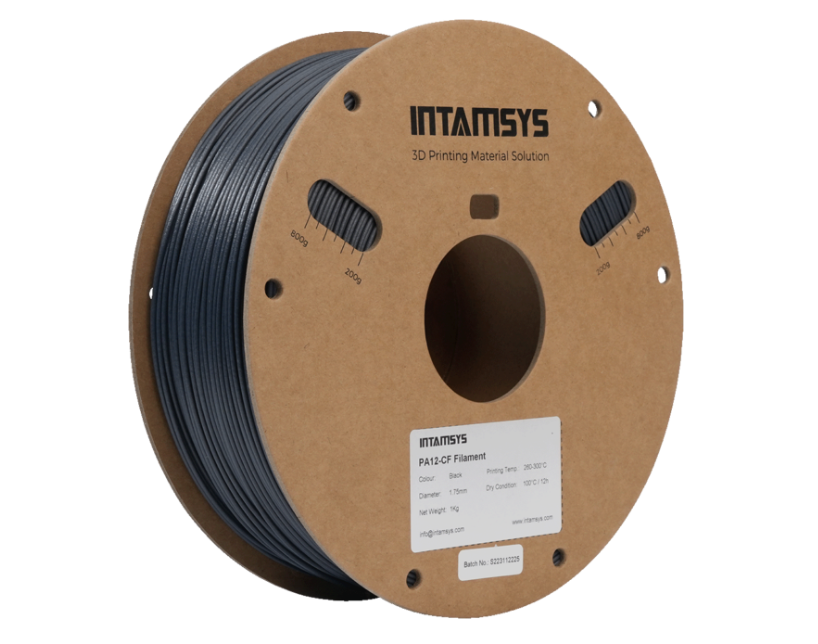

INTAMSYS PA12-CF 3D printing filament.

1104-0014

INTAMSYS | PA12-CF

$168.00

INTAMSYS PA12-CF is a carbon fiber-reinforced PA12 (Nylon 12) filament. Leveraging PA12’s naturally low moisture sensitivity, it maintains exceptional mechanical strength and thermal performance, even after moisture conditioning.
Color

  • Priority Delivery

    Typically ships within 1 week

  • After-Sale Service

    Email and Phone support

  • Physical Properties

  • Mechanical Properties

  • Request Information

Density (ISO 1183)

1.06 g/cm³

Glass Transition Temperature (DSC, 10 °C/min)

108 °C

Melting Temperature (DSC, 10 °C/min)

165 °C

Heat Deflection Temperature (ISO 75 1.8MPa)

105 °C

Melt Index (280°C, 2.16 kg)

25 g/10min

Tensile Strength (ISO 527)

69.3 MPa

Young’s Modulus (ISO 527)

3748 MPa

Elongation at Break (ISO 527)

2.9%

Flexural Strength (ISO 178)

114.1 MPa

Flexural Modulus (ISO 178)

3532 MPa

Impact Strength (ISO 179, Notched)

12.1 kJ/m2

Need more information?

We’re committed to providing expert insights and responsive service to guide you every step of the way. To get started, simply fill out the form below and we’ll be in touch shortly.

Need more information?

We’re committed to providing expert insights and responsive service to guide you every step of the way. To get started, simply fill out the form below and we’ll be in touch shortly.

A CLOSER LOOK

EXPLORE PA12-CF BY INTAMSYS

Download Tech Sheet

Low moisture absorption

More stable than PA6, less water uptake.

Thermal stability

Withstands heat with reduced warping/shrinkage.

High strength & stiffness

Carbon fiber reinforcement improves durability.

Good layer adhesion & finish

Strong bonding and smooth matte surface.

FOR PA12-CF by intamsys

OUR FEATURED PRODUCTS

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

What is PA12-CF by INTAMSYS?

PA12-CF is a nylon 12 filament reinforced with about 15% chopped carbon fiber. It combines the toughness of nylon with higher stiffness and reduced moisture absorption compared to PA6-based nylons.

What are the mechanical and thermal properties of PA12-CF?

This material offers a tensile strength of around 70 MPa, a Young’s modulus close to 3,750 MPa, and a heat deflection temperature of roughly 105 °C at 1.8 MPa. Its glass transition temperature is about 108 °C and it melts around 165 °C.

What are the recommended printing conditions for PA12-CF?

PA12-CF prints best with a nozzle temperature between 260 and 300 °C, a heated bed, and an enclosed chamber to reduce warping. Because of the abrasive carbon fiber, a hardened or wear-resistant nozzle is recommended.

What are common challenges when printing PA12-CF?

Like other nylons, PA12-CF is moisture sensitive, so the filament should be kept dry to avoid surface defects. In addition, the carbon fibers make it abrasive, which means standard brass nozzles will wear out quickly if not replaced with hardened options.

What are typical applications for PA12-CF?

This filament is widely used for functional end-use parts, tooling, fixtures, and prototypes that require high strength, stiffness, and resistance to heat and chemicals. It is popular in automotive, industrial, and engineering applications.
