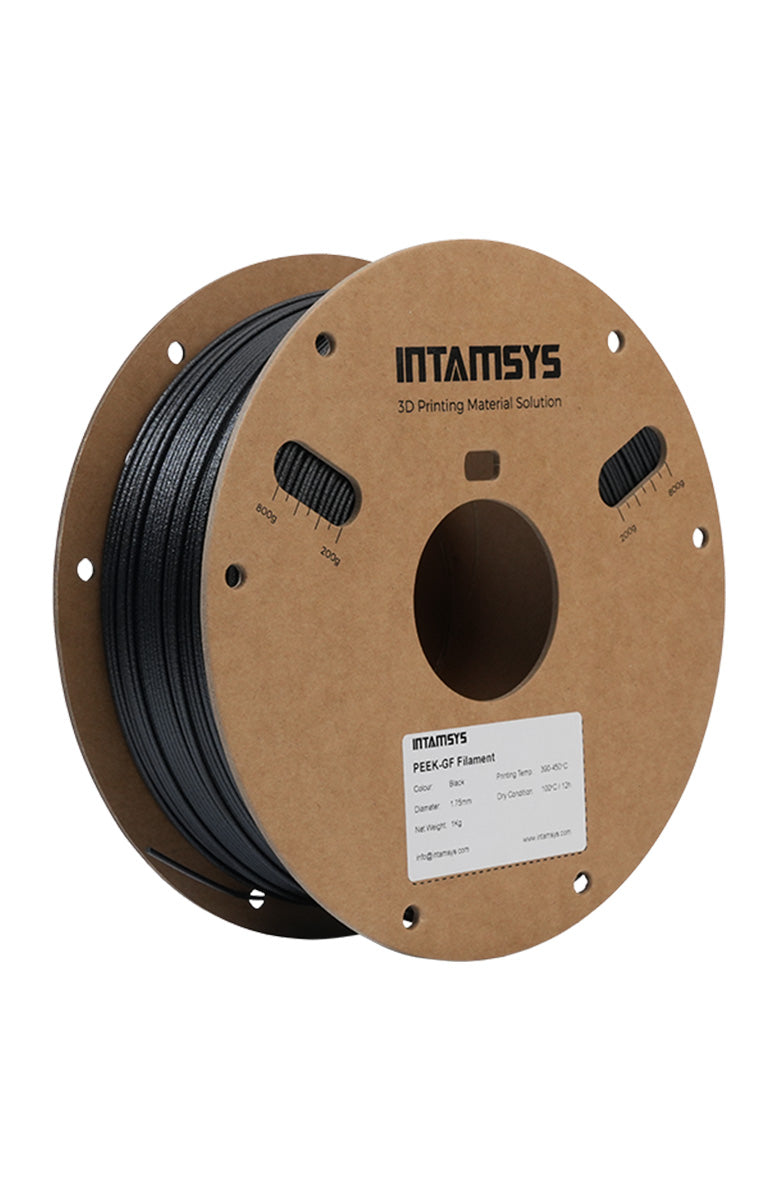

INTAMSYS PEEK-GF 3D printing filament
INTAMSYS PEEK-GF 3D Print

1108-0008

INTAMSYS | PEEK GF (Glass Fiber)

$727.00

INTAMSYS PEEK-GF is a high-performance polyetheretherketone (PEEK) thermoplastic reinforced with glass fiber. This formulation provides exceptional stiffness and excellent heat resistance, making it well-suited for demanding industrial applications.
Size

  • Priority Delivery

    Typically ships within 1 week

  • After-Sale Service

    Email and Phone support

  • Physical Properties

  • Mechanical Properties

  • Request Information

Density (Crystalline)

1.35 g/cm³ (ISO 1183)

Glass transition temperature

143 °C (ISO 11357)

Melting Point

343 °C (ISO 11357)

Heat Deflection Temperature

315 °C (ISO 75-f, 1.8 MPa)

Thermal Conductivity

0.3 W·m⁻¹·K⁻¹ (ISO 22007-4, 23°C)

Melt index

12 g/10 min (ISO 1133, 380°C, 5 kg)

Shore D Hardness

86 (ISO 868, 23°C)

Water Absorption (Immersion)

0.05 % (ISO 62-1, 24h, 23°C)

Water Absorption (Equilibrium)

0.4 % (23°C)

Tensile strength

86.6 MPa (ISO 527)

Young’s modulus

4044 MPa (ISO 527)

Elongation at break

2.9–3.4 % (ISO 527)

Flexural strength

158.7 MPa (ISO 178)

Flexural modulus

5713 MPa (ISO 178)

Impact strength (Notched)

8.9 kJ/m² (ISO 179)

Need more information?

Whether you're looking to explore additive manufacturing solutions, need support with 3D printing technologies, or have questions about how EAC Additive can help transform your product development process, our team is here to help.

We’re committed to providing expert insights and responsive service to guide you every step of the way. To get started, simply fill out the form below and we’ll be in touch shortly.

Get in Touch!

Thanks for contacting us. We'll get back to you as soon as possible.

A CLOSER LOOK

EXPLORE PEEK-GF BY INTAMSYS

Download Tech Sheet

Improved Surface Finish

Excellent Thermal Resistance

High Mechanical Strength

Enhanced Dimensional Stability

FOR PEEK-GF by intamsys

OUR FEATURED PRODUCTS

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

What is INTAMSYS PEEK-GF filament?

PEEK-GF is a glass fiber reinforced version of PEEK, designed to deliver higher stiffness, better dimensional stability, and improved surface quality compared to standard PEEK.

What applications is INTAMSYS PEEK-GF best suited for?

It’s ideal for aerospace, automotive, and industrial parts where high strength, heat resistance, and precision are critical.

What are the recommended printing conditions for INTAMSYS PEEK-GF?

  • Nozzle temperature: 360–400 °C
  • Bed temperature: 120–160 °C
  • Chamber temperature: ~90–120 °C
  • Enclosure: Strongly recommended for consistent thermal performance.

Is INTAMSYS PEEK-GF moisture-sensitive?

Yes, like most high-performance polymers, PEEK-GF is hygroscopic. Store it in a dry box and pre-dry before printing to avoid bubbles and poor layer adhesion.

What are the main advantages of INTAMSYS PEEK-GF over standard PEEK?

PEEK-GF offers greater rigidity, less warping, better dimensional accuracy, and smoother surface quality, while maintaining excellent thermal and chemical resistance.
