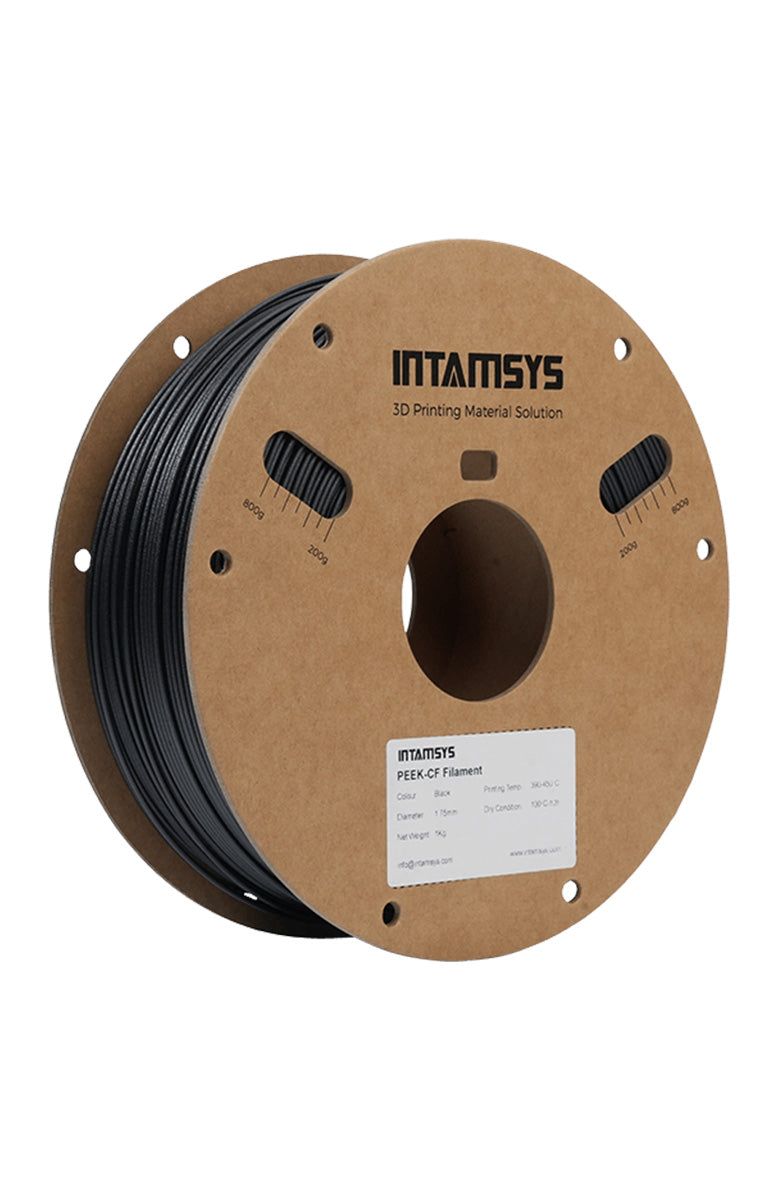

INTAMSYS PEEK-CF 3D printing filament
INTAMSYS PEEK-CF 3D Print

1108-0004

INTAMSYS | PEEK-CF (Carbon Fiber)

$395.00

INTAMSYS PEEK-CF is a high-performance polyetheretherketone (PEEK) thermoplastic reinforced with carbon fiber. It delivers exceptional stiffness and excellent heat resistance, making it ideal for high-demand engineering applications.
Size

  • Priority Delivery

    Typically ships within 1 week

  • After-Sale Service

    Email and Phone support

  • Physical Properties

  • Mechanical Properties

  • Request Information

Density (Crystalline)

1.34 g/cm³ (ISO 1183)

Glass transition temperature

143 °C (ISO 11357)

Melting Point

343 °C (ISO 11357)

Heat Deflection Temperature

315 °C (ISO 75‑f, 1.8 MPa)

Thermal Conductivity

0.95 W·m⁻¹·K⁻¹ (ISO 22007‑4, 23°C)

Melt index

12 g/10 min (ISO 1133, 380°C, 5 kg)

Shore D Hardness

86 (ISO 868, 23°C)

Water Absorption (Immersion)

0.06 % (ISO 62‑1, 24h, 23°C)

Water Absorption (Equilibrium)

0.4 % (23°C)

Tensile strength

87.4 MPa (ISO 527)

Young’s modulus

5193 MPa (ISO 527)

Elongation at break

2.9 % (ISO 527)

Flexural strength

168.6 MPa (ISO 178)

Flexural modulus

6338 MPa (ISO 178)

Impact strength (Notched)

9.7 kJ/m² (ISO 179)

Need more information?

We’re committed to providing expert insights and responsive service to guide you every step of the way. To get started, simply fill out the form below and we’ll be in touch shortly.

Need more information?

We’re committed to providing expert insights and responsive service to guide you every step of the way. To get started, simply fill out the form below and we’ll be in touch shortly.

A CLOSER LOOK

EXPLORE PEEK-CF BY INTAMSYS

Download Tech Sheet

Exceptional Mechanical Strength

High Thermal Resistance

Dimensional Stability

Chemical and Wear Resistance

FOR PEEK-CF by intamsys

OUR FEATURED PRODUCTS

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

What is INTAMSYS PEEK-CF filament?

PEEK-CF is a carbon fiber reinforced Polyether Ether Ketone (PEEK) filament. It combines the high-temperature, chemical, and mechanical properties of PEEK with enhanced stiffness and strength from carbon fiber.

What applications is INTAMSYS PEEK-CF best suited for?

It is ideal for aerospace, automotive, medical, and industrial parts that require high strength, dimensional stability, and heat resistance.

What are the recommended printing conditions for INTAMSYS PEEK-CF?

  • Nozzle temperature: 360–400 °C
  • Bed temperature: 120–160 °C
  • Enclosure recommended: Yes, to minimize warping and ensure optimal layer adhesion.

Is INTAMSYS PEEK-CF hygroscopic?

Yes, PEEK-CF is moisture-sensitive. Proper storage in a dry box and pre-drying before printing are recommended to avoid print defects.

What are the main benefits of using PEEK-CF?

It provides exceptional mechanical strength, high thermal resistance, chemical and wear resistance, and excellent dimensional stability, making it suitable for demanding engineering applications.
