Formlabs Clear Resin V5 1 L

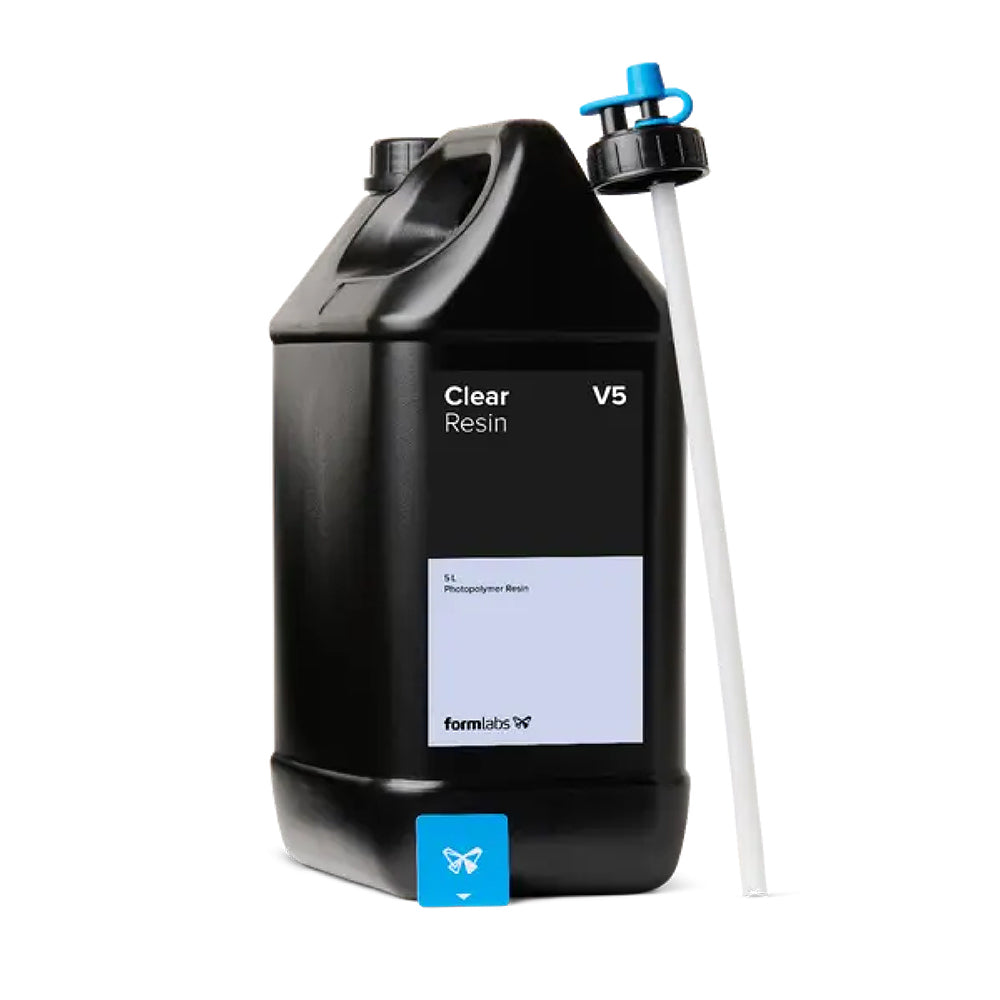

Clear Resin V5 Form 4 5 L

RS-C2-GPCL-05

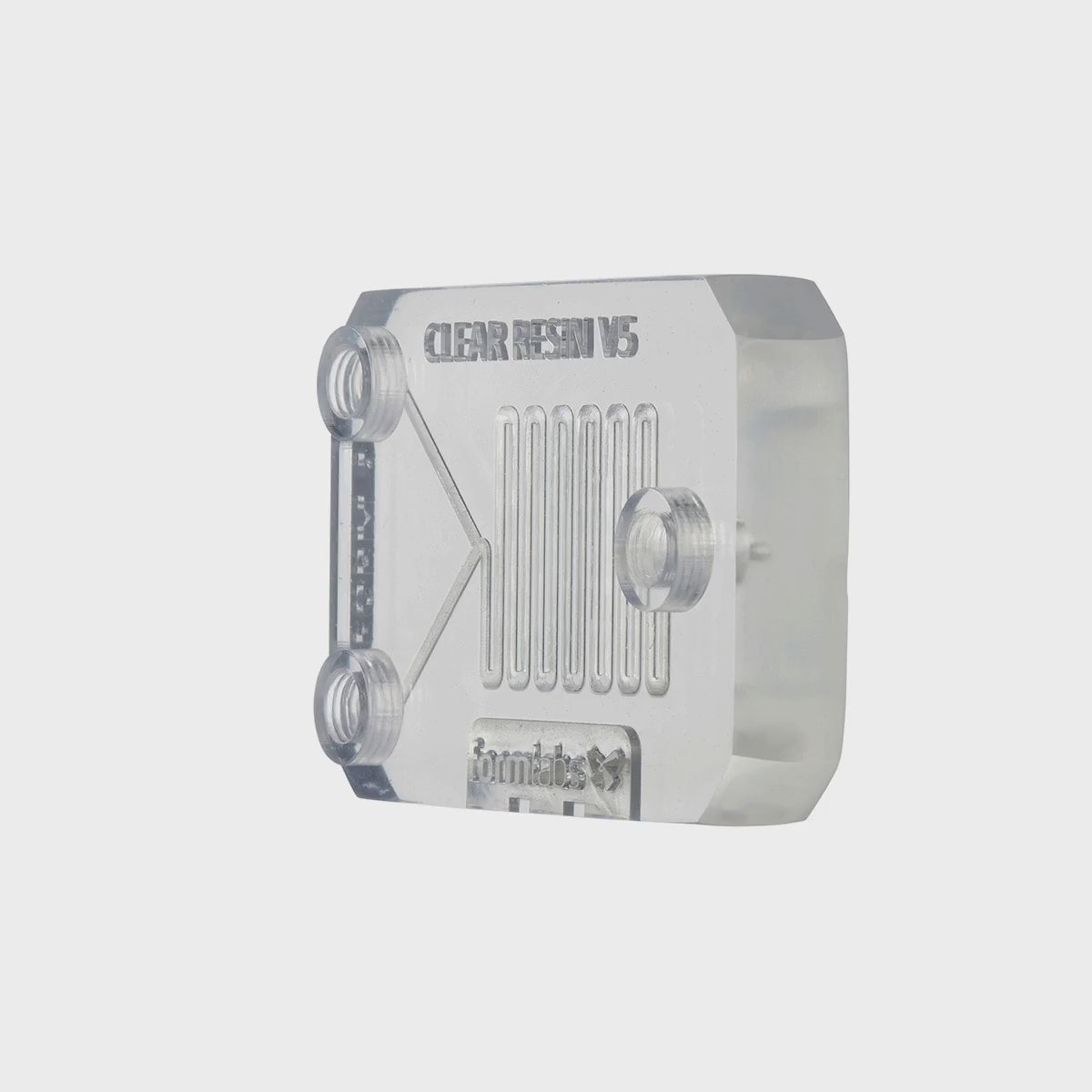

Formlabs | Clear Resin V5 (Form 4)

$79.00

Clear Resin is a remarkably transparent and color-neutral 3D printing material, designed to deliver quick printing speeds, precise results, excellent transparency, robust physical properties, and a straightforward, dependable printing process.

This resin allows for the production of parts that are highly transparent and colorless, which can then be polished to achieve a clarity close to that of optical-grade materials. Expect parts with both strength and stiffness, featuring a smooth surface that can rival that of acrylic.

With the debut of Clear Resin V5, this new formula enhances the Form 4 ecosystem by printing up to three times faster than its predecessor, alongside improvements in clarity, color neutrality, and mechanical strength.

IMPORTANT: 5 L Container Requires a Resin Pump to work.
Size

  • Priority Delivery

    Typically ships within 1 week

  • After-Sale Service

    Email and Phone support

  • Material Properties

  • Request Information

Post-cured at room temperature for 5 minutes

Ultimate Tensile Strength

51 MPa

Tensile Modulus

2575 MPa

Elongation at Break

10%

Flexural Strength

92 MPa

Flexural Modulus

2450 MPa

Notched Izod

29 J/m

Heat Deflection Temperature at 0.45 MPa

56 °C

Post-cured at 60 °C for 15 minutes

Ultimate Tensile Strength

60 MPa

Tensile Modulus

2750 MPa

Elongation at Break

8%

Flexural Strength

105 MPa

Flexural Modulus

2700 MPa

Notched Izod

29 J/m

Heat Deflection Temperature at 0.45 MPa

74 °C

Need more information?

We’re committed to providing expert insights and responsive service to guide you every step of the way. To get started, simply fill out the form below and we’ll be in touch shortly.

Need more information?

We’re committed to providing expert insights and responsive service to guide you every step of the way. To get started, simply fill out the form below and we’ll be in touch shortly.

Clear Resin V5 by Formlabs

Experience the Benefits

Faster print speeds

Optimized for the Form 4 system, it prints up to three times faster than previous versions.

Exceptional clarity & color neutrality

Parts are highly transparent and can be polished to near-optical transparency with minimal yellowing.

Strong mechanical performance

Offers robust tensile, flexural, and modulus properties suitable for functional and structural parts.

Reliable, low-odor workflow & ease of use

Designed for consistent, low-shrinkage printing with low volatile organic compound (VOC) emissions and smooth part finishing.

For Clear Resin V5 by Formlabs

our featured products

find your answers here

frequently asked questions

What makes Clear Resin V5 different from previous versions?

It prints up to three times faster using the Form 4 system, with improved clarity, color neutrality, and better mechanical properties.

Is post-curing required with Clear Resin V5, and what are the options?

Post-curing is optional but improves properties. Options: 5 min at ambient or 15 min at 60 °C for best strength and heat resistance.

What kind of parts is Clear Resin V5 ideal for?

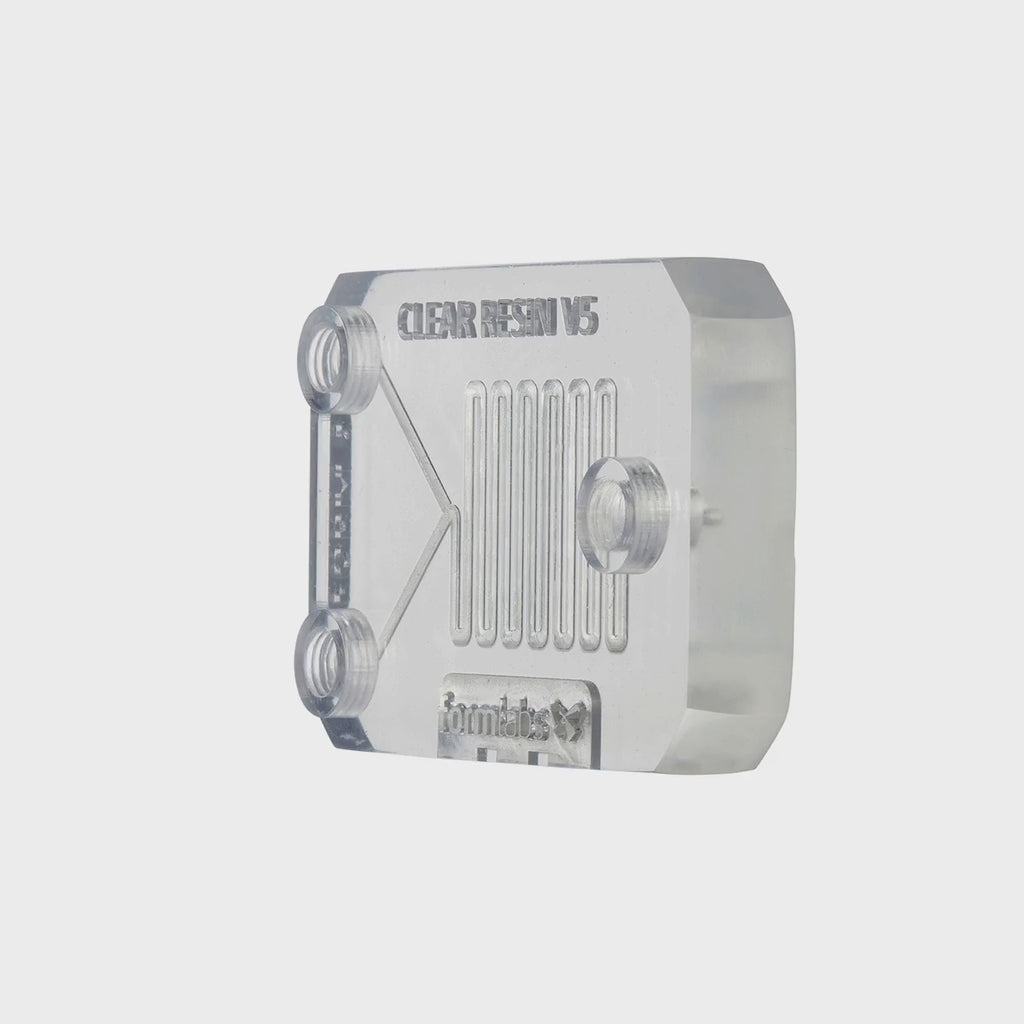

It’s great for transparent enclosures, optical parts, fluidic devices, and parts that showcase internal features.

How transparent are parts printed in Clear Resin V5?

Parts can transmit ~85 % of visible light at 2 mm thickness, which can be polished to near-optical clarity.

Is Clear Resin V5 compatible with all Formlabs printers?

No — it’s designed for the Form 4 series (Form 4, 4B, 4L, 4BL) and uses the associated resin tanks and settings.
