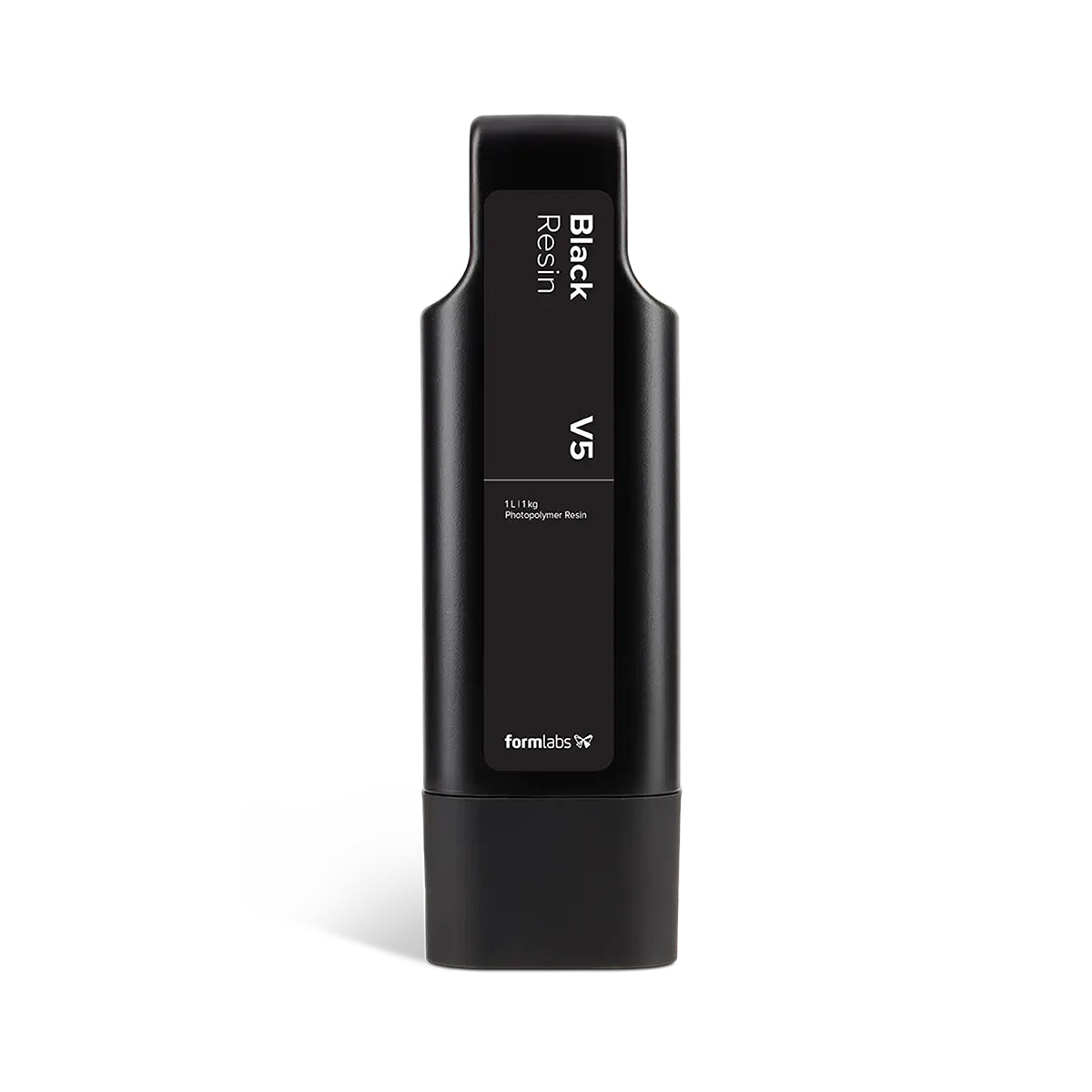

Formlabs Black Resin V5
Formlabs | Black Resin V5 (Form 4)

RS-C2-GPBK-05

Formlabs | Black Resin V5 (Form 4)

$79.00

Black Resin is a premium, deep-black general-purpose material designed to deliver the ideal combination of fast print speeds, outstanding accuracy, presentation-ready aesthetics, robust mechanical strength, and a streamlined, dependable workflow.

Produce parts that are strong and rigid with a surface quality comparable to injection molding. Its rich, matte black finish highlights fine details with exceptional precision.

Black Resin V5 introduces a new formulation built for the Form 4 Series, enabling prints up to three times faster than the previous version while also enhancing mechanical performance.

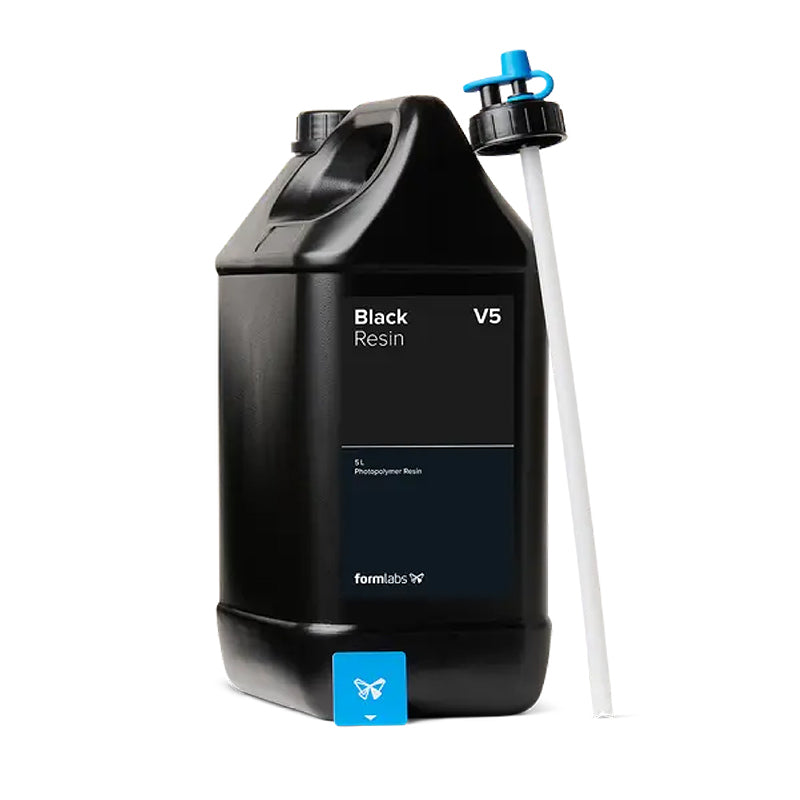

IMPORTANT: 5 L Container Requires a Resin Pump to work.
Size

  • Priority Delivery

    Typically ships within 1 week

  • After-Sale Service

    Email and Phone support

  • Material Properties

  • Request Information

Post-cured at room temperature for 5 minutes

Ultimate Tensile Strength

57 MPa

Tensile Modulus

2450 MPa

Elongation at Break

14%

Flexural Strength

91 MPa

Flexural Modulus

2450 MPa

Notched Izod

29 J/m

Heat Deflection Temperature at 0.45 MPa

61 °C

Post-cured at 60 °C for 15 minutes

Ultimate Tensile Strength

61 MPa

Tensile Modulus

2700 MPa

Elongation at Break

10%

Flexural Strength

103 MPa

Flexural Modulus

2750 MPa

Notched Izod

29 J/m

Heat Deflection Temperature at 0.45 MPa

69 °C

Need more information?

We’re committed to providing expert insights and responsive service to guide you every step of the way. To get started, simply fill out the form below and we’ll be in touch shortly.

Need more information?

We’re committed to providing expert insights and responsive service to guide you every step of the way. To get started, simply fill out the form below and we’ll be in touch shortly.

Black Resin V5 by Formlabs

Experience the Benefits

Balanced Flexibility

Moderate elongation at break provides a good balance between strength and flexibility for resilient parts.

Strong and Durable

High tensile and flexural strength ensure parts can withstand stress and maintain their form under load.

Excellent Dimensional Stability

A high tensile modulus and consistent stiffness make it ideal for precise, functional parts.

Heat-Resistant Performance

With a heat deflection temperature up to 69 °C, parts maintain stability and shape even in warm environments.

For Black Resin V5 by Formlabs

our featured products

find your answers here

frequently asked questions

What types of applications is Black Resin V5 best suited for?

It’s ideal for prototyping, product design, and general-purpose engineering parts that need strength, stiffness, and a smooth surface finish.

Does Black Resin V5 require post-curing?

Yes. Post-curing at room temperature or 60 °C improves mechanical strength, stiffness, and heat resistance for optimal performance.

How strong are parts made with Black Resin V5?

Post-cured parts reach up to 61 MPa tensile strength and 103 MPa flexural strength, comparable to injection-molded plastics.

Is Black Resin V5 suitable for functional or load-bearing parts?

Yes, its balance of rigidity and moderate flexibility makes it suitable for functional prototypes and light-duty mechanical assemblies.

How heat-resistant are parts printed with Black Resin V5?

Parts maintain dimensional stability up to 69 °C under a 0.45 MPa load, making it suitable for moderate-temperature environments.
