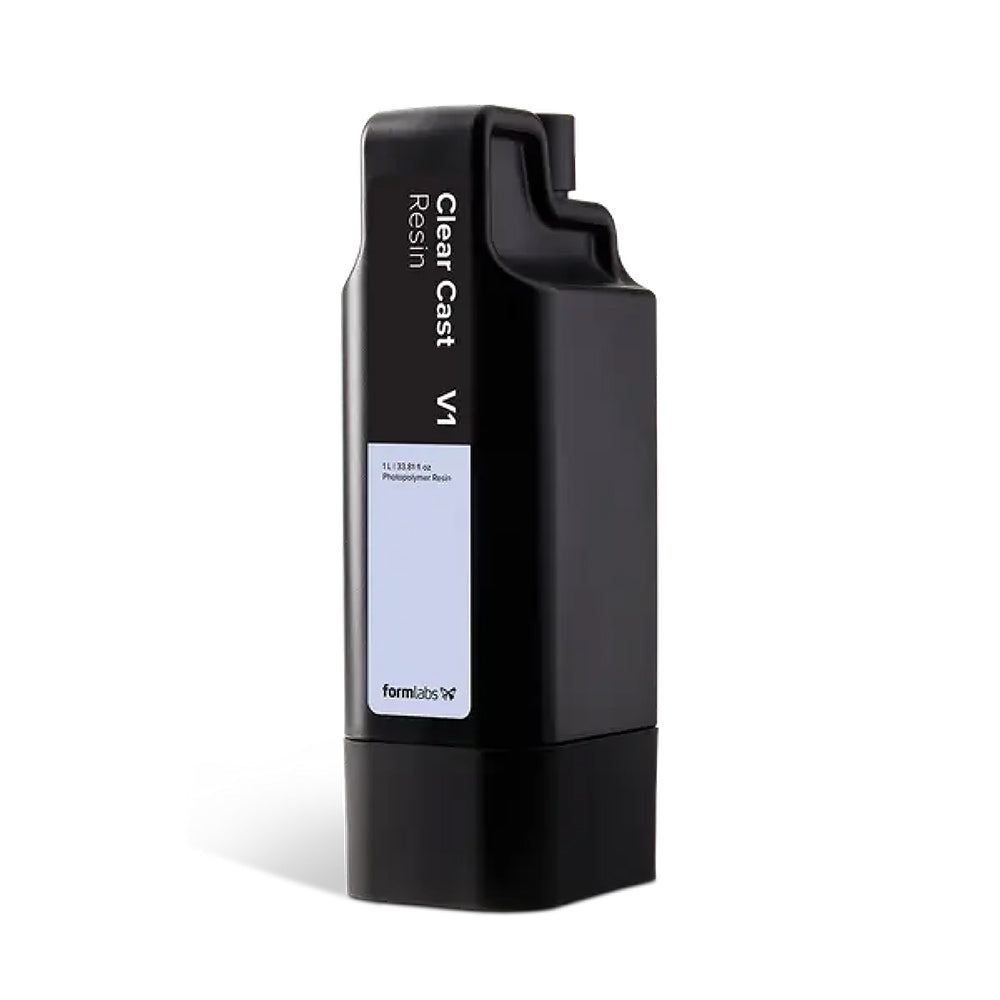

Clear Cast Resin (Form 4)

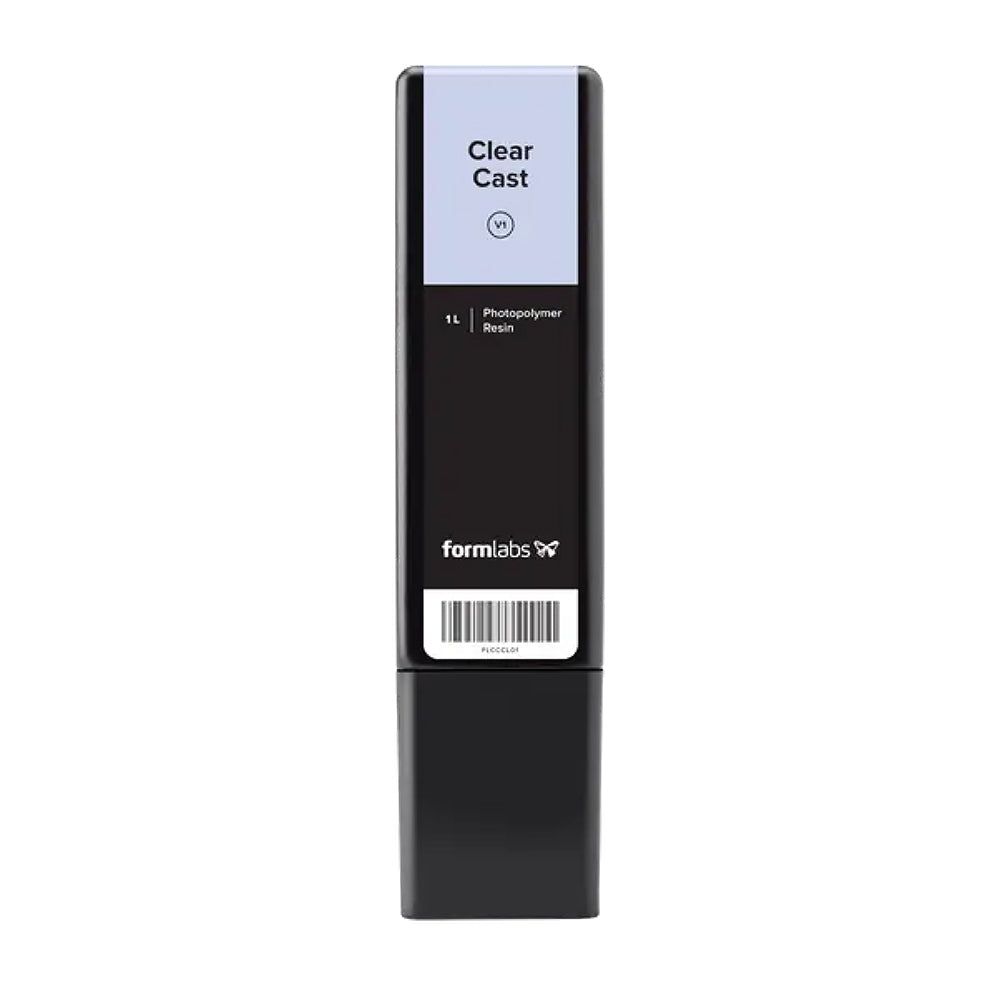

Clear Cast Resin Form 3 1 L

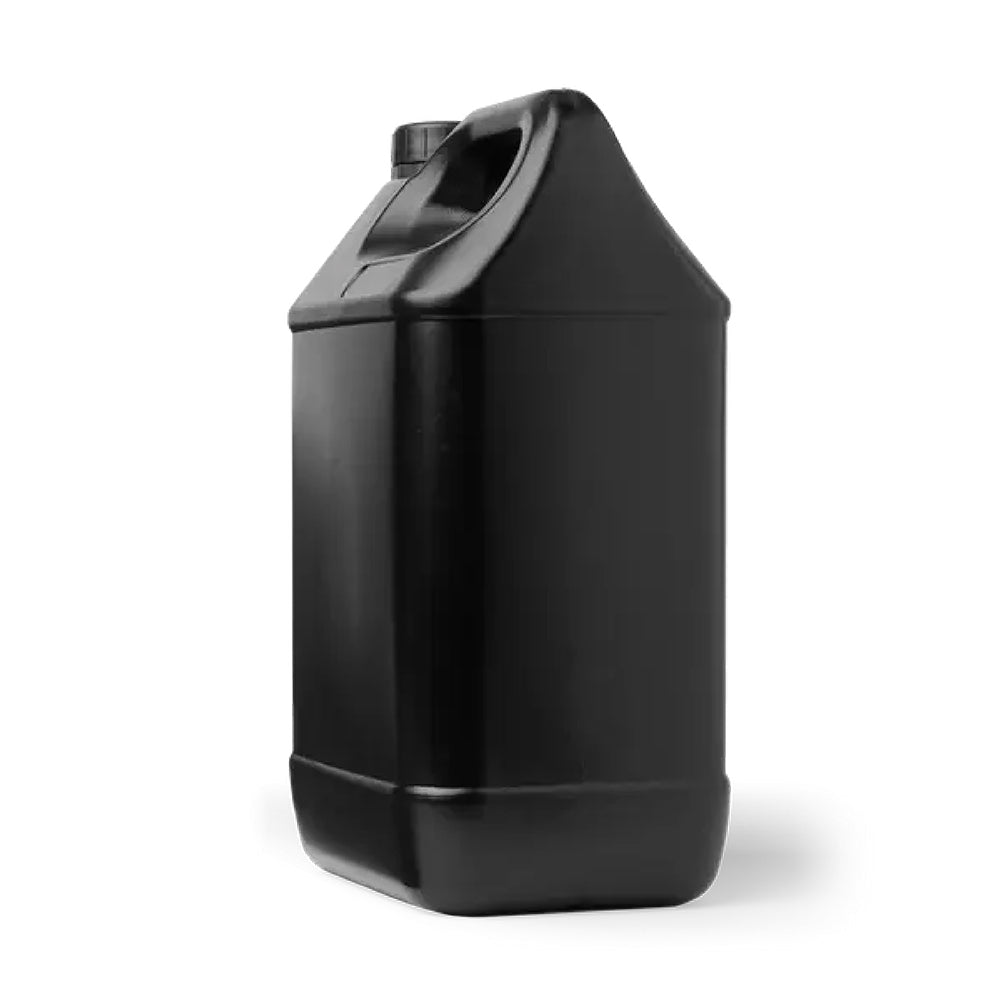

Clear Cast Resin 5 L

RS-C2-CCCL-01

Formlabs | Clear Cast Resin

$149.00

Clear Cast Resin is engineered for investment casting, allowing direct printing of patterns ready for investment and casting. It delivers ultra-low thermal expansion, minimal ash, and is free of heavy metals.

When combined with latticing software, Clear Cast Resin (Form 4) is especially well-suited for larger parts, excelling with geometries thicker than 3 mm.

IMPORTANT: 5 L Container Requires a Resin Pump to work.
Size

  • Priority Delivery

    Typically ships within 1 week

  • After-Sale Service

    Email and Phone support

  • Material Properties

  • Request Information

Ultimate Tensile Strength

65 MPa

Tensile Modulus

2.8 GPa

Flexural Modulus

2.2 GPa

Thermal Expansion, -30-140°C

94.8 μm/m/°C

Ash Content

<0.20%

Antimony

<10 ppm

Detected Transition Metals (>10 ppm)

Al, Cu

High Concentration Transition Metals (>50 ppm)

None

Need more information?

We’re committed to providing expert insights and responsive service to guide you every step of the way. To get started, simply fill out the form below and we’ll be in touch shortly.

Need more information?

We’re committed to providing expert insights and responsive service to guide you every step of the way. To get started, simply fill out the form below and we’ll be in touch shortly.

Clear Cast Resin by Formlabs

Experience the Benefits

High accuracy & versatility

Patterns typically stay within 0.25 mm of the design and are compatible with many metal/shell systems.

Clean burnout with minimal residue

Very low ash content and no trace heavy metals.

Low thermal expansion

Minimizes stress and cracking in casting shells.

Enables in-house pattern production & faster iteration

Reduces reliance on outsourcing, cuts costs, and speeds workflows.

For Clear Cast Resin by Formlabs

our featured products

find your answers here

frequently asked questions

What makes Clear Cast Resin suitable for investment casting?

It offers extremely low thermal expansion and clean burnout with low ash and no heavy metals.

What printing accuracy can I expect from using Clear Cast Resin?

Patterns typically stay within 0.25 mm of the original design.

What post-processing and burnout steps are required for Clear Cast Resin?

After washing and curing, you attach the pattern to a casting tree, shell it, and run standard burnout schedules (e.g. 700-900 °C) without needing specialized changes.

What thickness or geometry limits does Clear Cast Resin support?

It is ideal for parts thicker than 3 mm and works well with lattice/hollowing techniques to reduce material and burnout stress.

Which printers is Clear Cast Resin compatible with?

It works with SLA printers like Form 3, 3B, 3L, 3BL, and newer Form 4 series models.
