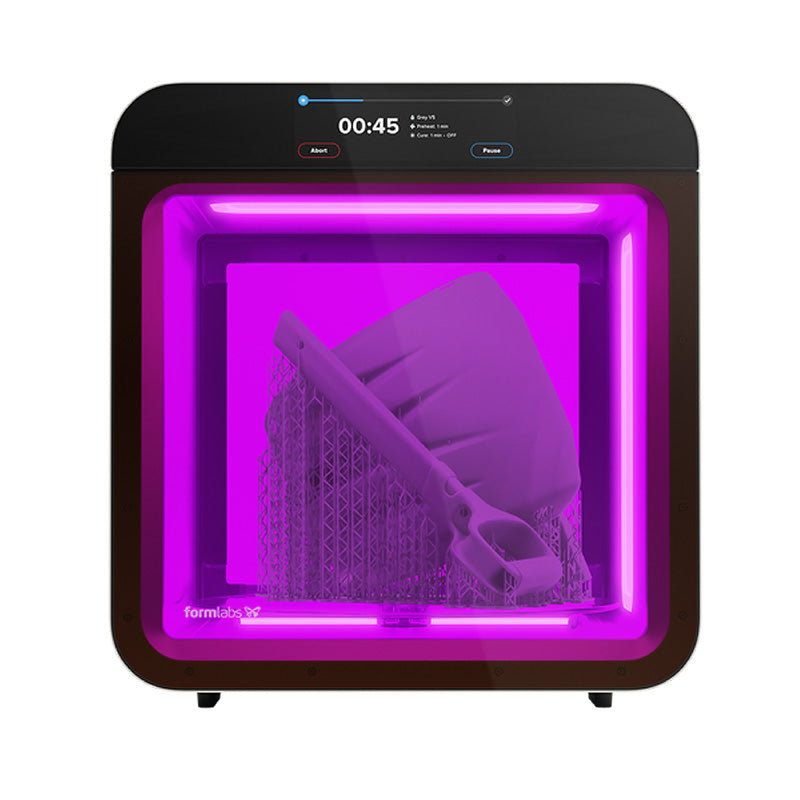

Form Cure L V2

PKG-FHL-CU-120V-02

Formlabs | Form Cure L V2

Starting at

$4,500.00

The Form Cure L V2 uses precise heat and 405 nm light to produce tough, high-strength parts with excellent speed and consistency. It can post-cure large Form 4L/BL prints in as little as 60 seconds, providing 5x more UV power, faster heat-up times, a 26% smaller footprint than the previous model, and capacity for parts up to 19% larger. Choose a validated preset for any of Formlabs’ 45+ materials or adjust time and temperature for custom needs.

Post-curing finishes the chemical reaction started during printing, improving strength, toughness, heat resistance, creep resistance, and surface hardness.

For biocompatible materials, post-curing is required to meet regulatory safety standards.

Request a Quote

  • Priority Delivery

    Typically ships within 1 week

  • Ease of Use

    Engineered for quick and simple cleanup

  • Warranty

    1-Year warranty

  • After-Sale Service

    Email and Phone support
  • Product Specifications
  • Product Services

Technical Specifications

Printer Compatibility

Form 4L, Form 4BL, Form 4, Form 4B, Form 3/B/+, Form 2

Dimensions

507 Ă— 543 Ă— 545 mm
20.0 Ă— 21.4 Ă— 21.5 in

Weight

40.0 kg
88.2 lb

Turntable Diameter

404 mm
15.9 in

Maximum Part Height

365 mm
14.4 in

Maximum Cure Chamber Temp

100 °C
212 °F

Light Source

96 multi-directional LEDs

LED Power

350 W

LED Radiant

120 W

LED Wavelength

405 nm

Power Requirements

Input (NA): 100 – 125 VAC, 50–60Hz, 15 A
Input (EU): 220 – 240 VAC, 50–60Hz, 8 A

Professional Support

Additional Warranty Available

Starting at $499

Expert Support

Phone support by our team. Available Monday through Friday, 9 am - 5 pm CST.

A CLOSER LOOK

EXPLORE THE FORM CURE L V2

Ultra-Fast Curing

Achieve cure cycles up to 5–6x faster and heat-up times 40% quicker than the previous generation.

Cure Large Parts with Ease

Spacious chamber accommodates everything from the largest Form 4L parts to full production batches.

Reliable, Repeatable Performance

Engineered for consistent, validated curing results every time.

Effortless Operation

A compact, user-friendly design makes curing as simple as pressing a button—completing the Form 4L ecosystem.

FOR FORMLABS Form Cure L V2

OUR RELATED PRODUCTS

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

What does the Form Cure L V2 do?

It combines heat and 405 nm light to post-cure large resin prints, improving strength, toughness, heat resistance and surface hardness.

How fast can the Form Cure L V2 cure parts?

It can post-cure most large resin parts in about 60 seconds using general-purpose resins. Engineering and biocompatible resins take about 3-15 minutes.

What size parts will the Form Cure L V2 handle?

Its chamber fits parts up to 353 mm Ă— 196 mm Ă— 365 mm, with a turntable diameter of 404 mm and maximum usable height of 365 mm.

What materials are compatible with the Form Cure L V2?

It supports more than 45 validated materials from Formlabs, and also allows advanced users to customize time and temperature for other needs.

Why is post-curing with the Form Cure L V2 required for biocompatible materials?

Because for biocompatible resins, post-curing is necessary to meet regulatory safety standards and ensure required performance.
