Formlabs Form Wash (2nd Generation).

FH-WA-02

Formlabs | Form Wash (2nd Generation)

Starting at
$699.00

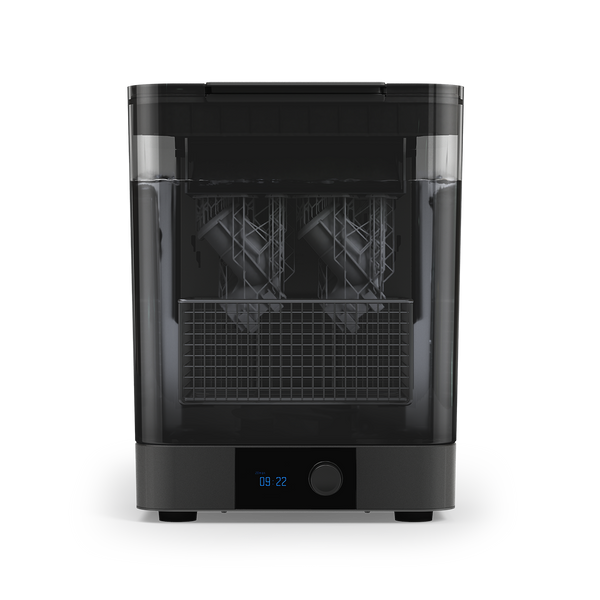

Form Wash automatically cleans printed parts thoroughly and efficiently with IPA or alternative solvents. Keep parts directly on the Build Platform as you transition them from the printer to Form Wash, or remove parts and place them in the wash basket. Parts are precisely and thoroughly agitated in solvent with an impeller, getting every nook and cranny perfectly clean, automatically for the appropriate time. When washing completes, the Form Wash automatically raises parts out of the IPA so they can air dry.

Request a Quote

  • Priority Delivery

    Typically ships within 1 week

  • Ease of Use

    Engineered for quick and simple cleanup

  • Warranty

    1-Year warranty

  • After-Sale Service

    Email and Phone support

  • Product Specifications
  • Product Services

Technical Specifications

Product Weight

8.6 kg (18.9 lb)

Product Dimensions

31.5 × 29.3 × 40.5 cm (12.4 × 11.5 × 15.9 in)
Height when open: 71.4 cm (28.1 in)

Minimum Space Requirement

40.0 × 40.0 × 80.0 cm (15.8 × 15.8 × 31.5 in)

Power Requirements

90–240 V | 2.0 A 50/60 Hz | 50 W

Electrical Safety Standard

IEC 62368-1:2018 & CSA/UL 62368-1:2019 Ed.3

Sound Emission

Does not exceed 70 dB(A).

Bucket Volume

14.4 L to reach build platform surface with build platform mount

arms at highest position
3.8 US gal

Maximum Part Size

20.0 × 14.5 × 18.5 cm (7.9 × 5.7 × 7.3 in), on build platform with basket

installed
20.0 × 14.5 × 19.5 cm (7.9 × 5.7 × 7.6 in), on build platform with basket
removed
20.0 × 14.5 × 23.0 cm (7.9 × 5.7 × 9.1 in), in basket with no build platform

Operating Temperature

Suggested 18—28 °C (64—82 °F)

Agitation Method

Magnetically coupled impeller

Professional Support

Additional Warranty Available

Starting at $499

Expert Support

Phone support by our team. Available Monday through Friday, 9 am - 5 pm CST.

A CLOSER LOOK

EXPLORE THE FORM WASH (2ND GEN)

Download Manual

Hands-Free Cleaning

Automatically washes and dries prints with minimal manual effort.

Efficient Solvent Use

Adjustable levels reduce waste and work with IPA or TPM.

Powerful Agitation

Thoroughly cleans parts with a magnetically driven impeller.

Multi-Printer Support

Compatible with Form 2, Form 3/+, and Form 4 build platforms.

FOR FORMLABS Wash (2nd Gen)

OUR RELATED PRODUCTS
Formlabs Resin Washing Solution.

Formlabs | Resin Washing Solution

Revolutionize your post-processing with Formlabs Resin Washing Solution. This non-flammable* cleaning agent excels in removing resin from 3D printed parts and outperforms IPA, accommodating double the resin load and reducing the frequency of replacements. Optimize costs and compatibility with Form Wash (2nd Generation) and Form Wash L systems.


$75.00
Form Cure 2nd Gen
Form Cure 2nd Gen
Form Cure 2nd Gen

Formlabs | Form Cure (2nd Generation) 120V

Form Cure (2nd Generation) delivers fast, high-performance post-curing with a powerful combination of heat and 405 nm light. With 4× more UV power, 5× faster heat-up times, and a 1.3× larger chamber, it cures Form 4/B prints in as little as 60 seconds. Choose from 45+ validated material presets or customize settings to meet your needs.

Post-curing finalizes the chemical process, improving part strength, toughness, heat resistance, and surface quality. It also ensures biocompatible materials meet required regulatory standards.
$999.00
Formlabs Form 4 3D printer.

Formlabs | Form 4 Basic Package

Transform your ideas into reality faster than ever with easy workflows, leading reliability, and stunning part quality using the Form 4 professional 3D printer ecosystem. Form 4 is a blazing fast masked SLA 3D printer that combines an industry-leading materials library with a reliable, accurate print engine. With tight tolerances, parts printed in every resin on Form 4 will match your design parameters, every time.
$3,499.00

Learn More

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

What printers is the Form Wash 2nd Generation compatible with?

It works with Form 2, Form 3/+, and Form 4 build platforms using adjustable mounts.

What solvents can I use with the Form Wash 2nd Generation?

You can use Isopropyl Alcohol (IPA) or Tripropylene Glycol Monomethyl Ether (TPM).

How long does a wash cycle take using the Form Wash 2nd Generation?

Typical wash times range from 10 to 20 minutes, depending on part complexity and resin type.

Does the Form Wash 2nd Generation dry parts too?

Yes, after washing, the platform automatically lifts and air-dries the parts.

How much solvent does the Form Wash 2nd Generation hold?

The tank holds up to 8.6 liters of solvent, with a minimum fill line around 4.5 liters for smaller washes.
