Formlabs Fuse Blast

FS1-FB-01

Formlabs | Fuse Blast

Starting at

$10,999.00

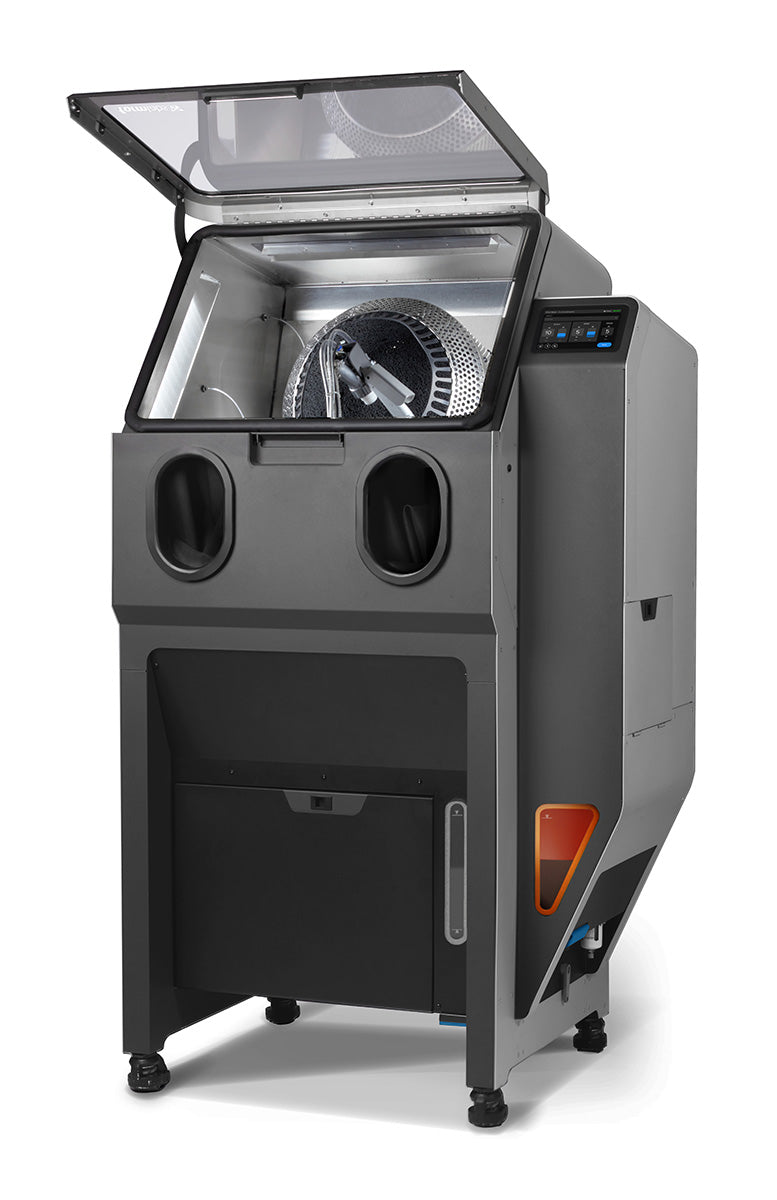

Fuse Blast makes post-processing SLS parts faster and easier than ever. This fully automated cleaning and polishing system delivers professional, consistent, touch-clean parts with minimal effort.

Seamlessly integrated into the Fuse Series ecosystem, Fuse Blast can clean an entire build chamber in as little as 15 minutes—cutting labor time and costs dramatically. Add the optional Polishing System to achieve smooth, semi-gloss, dye-ready finishes for professional-grade results every time.

Request a Quote

  • Priority Delivery

    Typically ships within 1 week

  • Ease of Use

    Engineered for quick and simple cleanup

  • Warranty

    1-Year warranty

  • After-Sale Service

    Email and Phone support

  • Physical & Environmental Specs

  • Functional & Technical Specs

  • Product Services

Printer Compatibility

Fuse Series SLS 3D Printers, third-party powder bed fusion printers

Minimum Access Dimensions (W × D × H)

145 × 150 × 210 cm / 57.4 × 59.6 × 82.6 in

Dimensions (W x D x H)

100 × 75 × 175 cm
39 × 29.6 × 68.7 in
Height when open: 195 cm (76.8 in)

Weight

164 kg (without blasting media)
360 lb (without blasting media)

Operating Environment

10–36 ºC (50–96.8 ºF), up to 2286 m / 7500 ft elevation

Sound Emission

≤ 75 dB(A)

Media Hopper Capacity

8.3 L (13 kg glass media or 5.2 kg polishing media)

Waste Hopper Capacity

10.6 L

Air Handling

Negatively pressurized hood, replaceable HEPA filter, independent venting system

Power Requirements

EU: 230 VAC, 3 A | US: 120 VAC, 6 A

Compressed Air

≥10 SCFM at 90 PSI (285 SLPM at 6 bar), regulated 90–120 PSI / 6–8 bar (typ. 4 HP compressor)

Connectivity

Wi-Fi: IEEE 802.11 b/g/n, 2.4 / 5.0 GHz, WPA/WPA2

Ethernet: RJ-45 (10/100/1000BASE-T), shielded Cat5e/Cat6 recommended

USB: Rev 2.0 Type-C port

Controls

Interactive touchscreen, manual foot pedals

Tumbling Basket

Ø 450 mm (fits full Fuse Series build volume)

Internal Work Area (W × D × H)

71 × 55 × 67 cm / 27.9 × 21.6 × 26.3 in

Accessible Work Area (basket removed)

57 × 50 × 67 cm / 22.4 × 19.6 × 26.4 in

Included Accessories

Transfer container, control pedals, ESD wrist strap, 7 mm socket wrench, 3 mm & 4 mm blast orifices, T-20 driver, floor mat

Professional Support

Additional Warranty Available

Starting at $1,650

Expert Support

Phone support by our team. Available Monday through Friday, 9 am - 5 pm CST.

A CLOSER LOOK

EXPLORE THE FUSE BLAST

Streamlined Workflow

Integrates with the Fuse ecosystem to cut labor by 80% and finish parts in as little as 15 minutes.

Consistent Results

Pre-set routines ensure reliability; manual mode adapts to unique part needs.

Finished Parts in 15 Minutes

Automatically clean a full build in 15 minutes; passive filtering extends media life and lowers costs.

Professional Parts

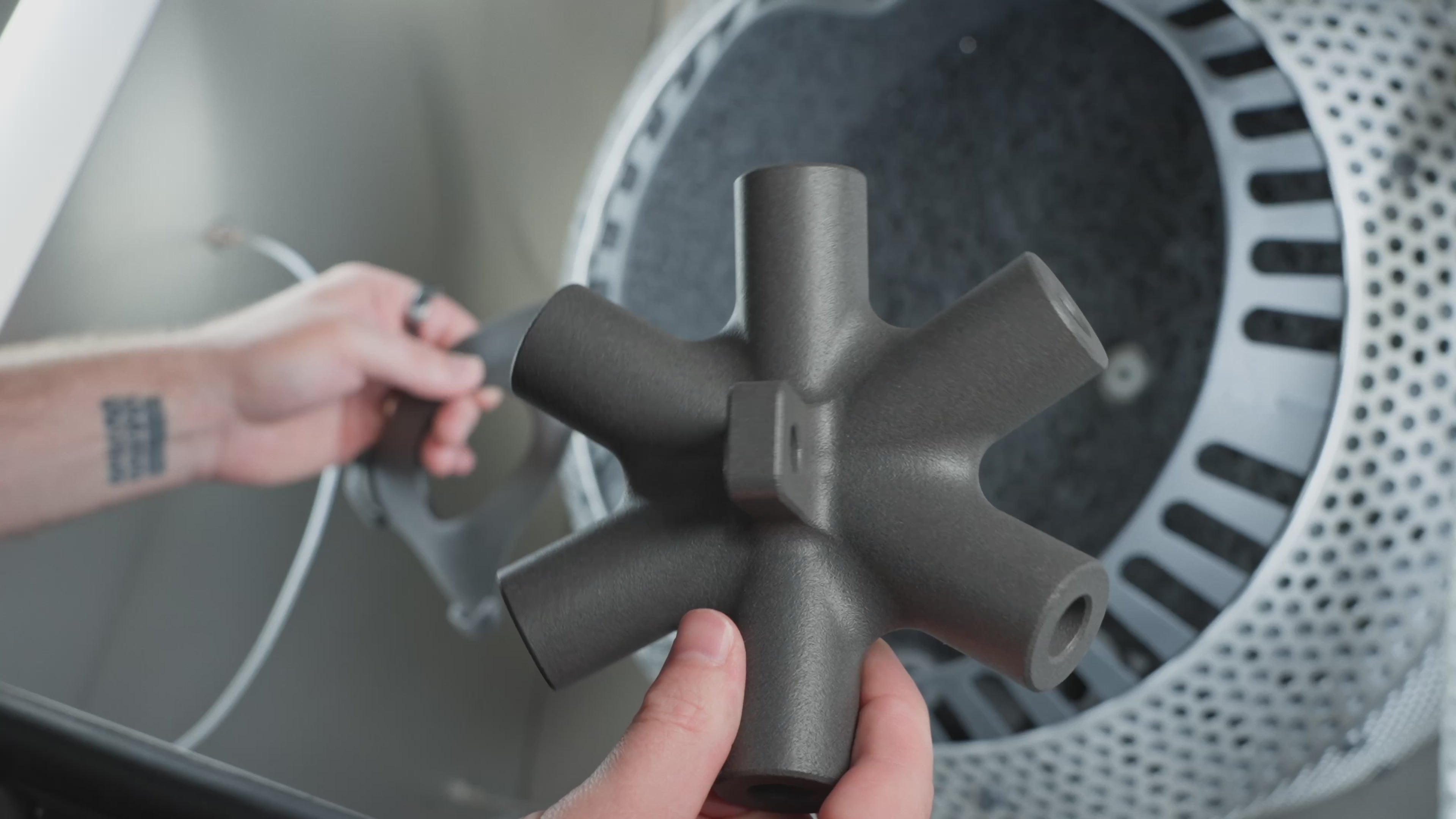

Inline ionizer keeps parts dust-free; optional Polishing System delivers smooth, dye-ready finishes.

FOR FORMLABS Fuse Blast

OUR RELATED PRODUCTS

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

What is the Fuse Blast used for?

The Fuse Blast is a fully automated cleaning and polishing system designed for post-processing SLS 3D printed parts. It quickly removes excess powder and, with the optional Polishing System, delivers smooth, dye-ready finishes.

How long does the Fuse Blast take to clean parts?

The Fuse Blast can automatically clean an entire Fuse build chamber of parts in as little as 15 minutes, significantly reducing manual labor and turnaround time.

Does Fuse Blast integrate with the Fuse Series printers?

Yes. It is designed to work seamlessly within the Fuse Series ecosystem, creating an automated, efficient workflow from printing to finished parts.

What finishes can I achieve with Fuse Blast?

By default, parts come out clean to the touch. With the optional Polishing System, parts can achieve a smooth, semi-gloss, scuff-resistant, and dye-ready finish.

What are the power and air requirements of the Fuse Blast?

Fuse Blast requires compressed air (≥10 SCFM at 90 PSI / 6–8 bar) and standard power: EU 230 VAC / 3 A or US 120 VAC / 6 A. A 4 HP compressor is typically sufficient.
